Zeta Potential in Dispersions: A Formulator's Guide

Zeta potential is the electrokinetic potential at the slipping plane, the boundary between the tightly bound ion layer surrounding a particle and the bulk dispersant phase. As a practical stability metric, values more positive than +30 mV or more negative than −30 mV generally indicate sufficient electrostatic repulsion to resist flocculation; values between −10 mV and +10 mV are effectively neutral and prone to aggregation. For formulators, the most important framing is this: zeta potential is a comparative, repeatable QC metric grounded in DLVO theory, not a standalone predictor of long-term shelf life. Instruments such as the Malvern Zetasizer and protocols such as the NCI Nanotechnology Characterization Laboratory (NCL) assay cascade provide the measurement infrastructure; the formulator's job is to use that data comparatively, across batches and conditions, rather than treating a single number as a verdict.

Key stability zones at a glance:

• Highly stable (electrostatic): zeta > +30 mV or < −30 mV
• Moderate stability: +10 to +30 mV or −10 to −30 mV
• Neutral / prone to flocculation: −10 to +10 mV

Key Takeaways

Zeta potential is a reliable, repeatable electrokinetic metric for dispersion stability when measured with a validated protocol, reported with full metadata, and interpreted as part of a broader formulation strategy rather than as a standalone predictor.

The physical origin of zeta potential lies in the electrical double layer that forms at every charged particle surface in a liquid medium. Ions of opposite charge to the particle surface adsorb tightly in the innermost region, the Stern layer, forming a compact, immobile shell. Beyond the Stern layer, a diffuse layer of loosely associated counterions and co-ions extends into the bulk, with ion concentration decaying exponentially with distance. The slipping plane sits at the outer edge of this diffuse layer: it is the notional surface that moves with the particle during electrophoresis. Zeta potential is the electrostatic potential measured at that plane, not at the particle surface itself, which is why it is an indirect, electrokinetic measure of net surface charge rather than a direct measure of surface chemistry.

DLVO theory frames dispersion stability as a balance between electrostatic repulsion (which zeta potential quantifies) and van der Waals attraction. When the repulsive energy barrier is high, particles resist close approach and aggregation is slow. When zeta magnitude falls, that barrier collapses and particles can flocculate irreversibly. The isoelectric point (IEP), the pH at which zeta potential passes through zero, marks the most unstable condition for electrostatically stabilized systems and is a critical parameter to map during formulation development.

Ionic strength and counterion valency both compress the double layer, reducing zeta magnitude even when surface charge is unchanged. Divalent or trivalent counterions are particularly effective at this compression, which is why hard water or high-salt process streams can destabilize a dispersion that appears stable in deionized water. Published analyses caution that predicting stability from zeta potential alone can be misleading because factors such as particle density, specific ion adsorption, surface conductivity, and polydispersity all affect real-world behavior independently of the measured zeta value.

Pro Tip: When mapping the isoelectric point, perform the pH titration in both directions (acid to base and base to acid) and check for hysteresis. A significant difference between the two curves suggests specific ion adsorption or surface dissolution, both of which complicate DLVO-based stability predictions.

How are the primary measurement techniques applied?

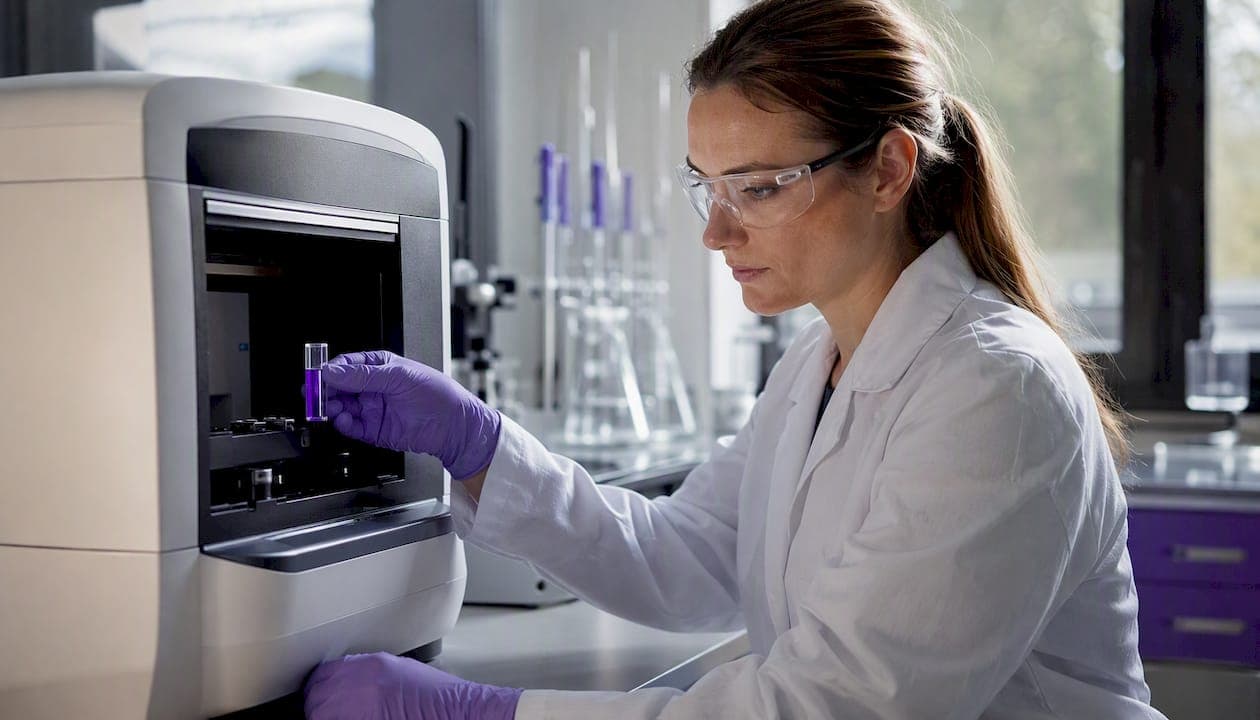

Electrophoretic light scattering

Electrophoretic light scattering (ELS) is the dominant technique for measuring zeta potential in dilute, optically clear dispersions. An oscillating electric field is applied across the sample cell, causing charged particles to migrate. A laser beam intersects the migrating particles, and the resulting Doppler frequency shift or phase shift of the scattered light is proportional to electrophoretic mobility. The Henry equation then converts mobility to zeta potential, requiring the dielectric constant (ε) and viscosity (η) of the medium, and the Henry function f(κa), which accounts for particle size relative to double-layer thickness.

ELS works well for aqueous systems with low-to-moderate conductivity, particle concentrations that yield adequate count rates without multiple scattering, and samples that are optically clear or only lightly turbid. The Malvern Zetasizer series uses phase analysis light scattering (PALS), a variant of ELS that extends sensitivity to low-mobility samples and non-aqueous media.

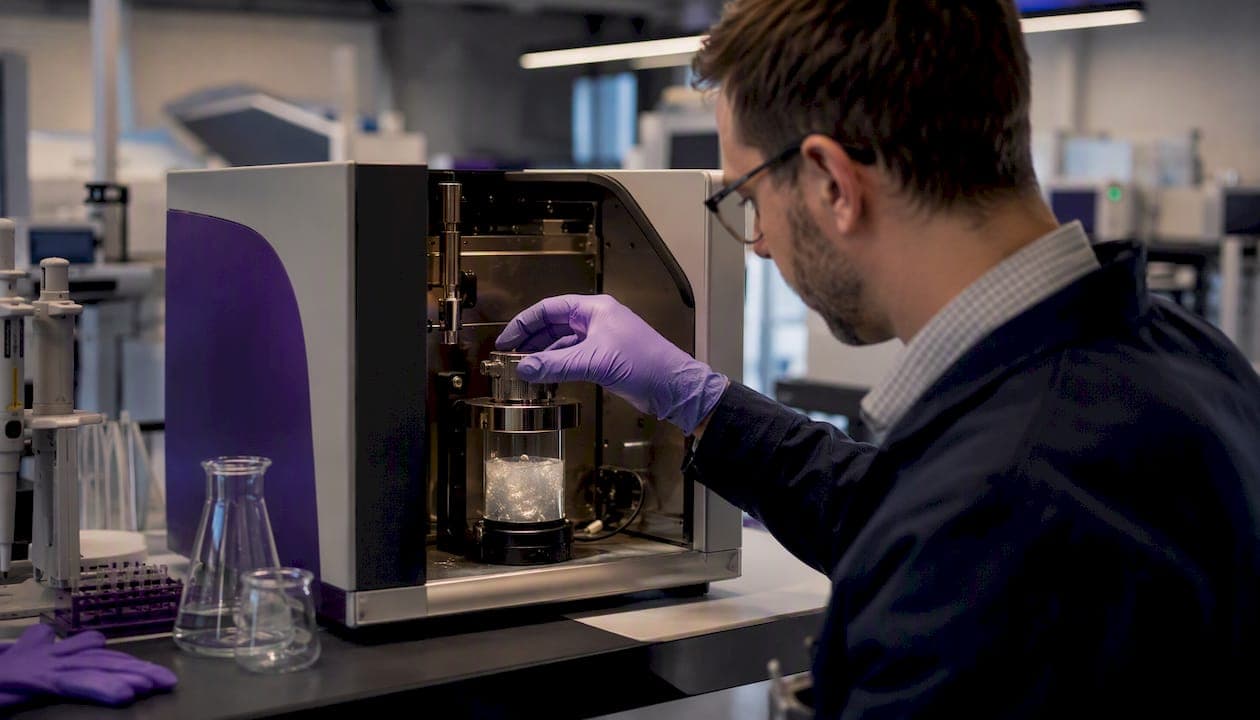

Electroacoustic methods

Electroacoustic techniques measure zeta-related properties in concentrated or high-conductivity suspensions where optical ELS fails, such as turbid slurries, ceramic pastes, and high-salt pharmaceutical formulations. An alternating electric field generates ultrasonic waves (electrokinetic sonic amplitude, ESA) or vice versa (colloid vibration current, CVI); the amplitude and phase of the acoustic signal relate to particle mobility and, by extension, zeta potential. Wyatt Technology instruments offer electroacoustic and multi-angle light scattering capabilities suited to concentrated systems where dilution would alter the surface chemistry or double-layer equilibrium.

Method selection guide

How do you convert electrophoretic mobility to zeta potential?

The Henry equation is the standard conversion:

ζ = (3η × Ue) / (2ε × f(κa))

where ζ is zeta potential, η is dynamic viscosity, Ue is electrophoretic mobility, ε is the dielectric permittivity of the medium, and f(κa) is the Henry function. The parameter κa is the ratio of particle radius (a) to Debye length (κ⁻¹), a measure of double-layer thickness relative to particle size.

Two limiting approximations simplify this:

• Smoluchowski approximation: f(κa) = 1.5, valid when κa >> 1, meaning the double layer is thin relative to particle radius. This applies to most aqueous systems containing salt at concentrations ≥10⁻³ M and particles larger than roughly 0.2 µm. Most instrument software defaults to Smoluchowski for aqueous dispersions, and it is the appropriate choice for the majority of coatings and industrial formulations.
• Hückel approximation: f(κa) = 1.0, valid when κa << 1, meaning the double layer extends far beyond the particle. This applies to very small particles (sub-10 nm) in low ionic strength media, such as nanoparticles in deionized water.

Between these limits, the full Henry function must be evaluated numerically. Instrument software such as the Malvern Zetasizer's DTS (Dispersion Technology Software) handles this automatically when the correct parameters are entered.

Surface conductivity introduces a further complication. When the conductivity of the double layer itself is significant relative to the bulk medium conductivity, the Dukhin number (Du = Ks / (Ka × κ⁻¹), where Ks is surface conductance) is non-negligible, and both Smoluchowski and Hückel underestimate the true zeta potential. Applying theoretical models without accounting for surface conductivity is a common source of systematic error, particularly for small, highly charged particles. Always report which approximation was used so that results from different labs or instruments remain comparable.

Key points on model selection:

• Use Smoluchowski (f(κa) = 1.5) as the default for aqueous salt-containing systems with particles >0.2 µm.
• Use Hückel (f(κa) = 1.0) for sub-10 nm particles in low ionic strength media.
• For non-aqueous systems, enter the correct dielectric constant and viscosity; do not use water defaults.
• Report the Henry function value and the model used alongside every zeta result.

What sample preparation and reporting does a reliable measurement require?

Reproducible zeta data depends as much on sample preparation discipline as on instrument quality. Practitioners commonly underreport critical metadata, and without it, results from different batches or labs cannot be meaningfully compared.

SOP checklist for sample preparation

• Concentration: determine the optimal concentration experimentally for each formulation. Larger particles scatter more light and require lower concentrations; the lab should map concentration vs. signal-to-noise rather than rely on manufacturer defaults.
• Dilution medium: avoid diluting concentrated samples in deionized water when the original dispersant contains electrolytes. Use the original dispersant phase or a matched background electrolyte (10 mM NaCl is a common choice for aqueous systems) to preserve double-layer equilibrium.
• Equilibration: allow at least 10–15 minutes after dilution or pH adjustment before measurement; surface adsorption equilibria can be slow.
• Filtration/centrifugation: remove dust and large aggregates with a 0.45 µm or 0.2 µm syringe filter for ELS samples, but verify that filtration does not remove the particles of interest.
• pH adjustment: use dropwise titration with dilute acid or base (0.1 M HCl or NaOH); add 1–3 µL increments per step and allow equilibration between additions.
• Background electrolyte: fixing ionic strength with a background electrolyte (e.g., 10 mM NaCl) improves reproducibility and makes the Smoluchowski approximation more reliable.

Pro Tip: When constructing a zeta-pH titration curve, titrate in both directions and use an autotitrator if available. Manual dropwise addition at 1–3 µL per step minimizes local pH spikes that can cause irreversible surface chemistry changes, particularly on metal oxide particles.

Required reporting metadata

Every reported zeta value should include the following metadata:

Polydisperse samples often produce multi-peak zeta distributions. Report both the mean zeta potential and the per-peak values with their relative amplitudes, since a bimodal distribution (e.g., one peak at −40 mV and a second near 0 mV) signals a mixed population that a single mean value obscures.

How should you select and validate your measurement instrument?

Cell types and compatibility

Three cell geometries cover most laboratory scenarios. The folded capillary cell (standard for Malvern Zetasizer) handles aqueous and many non-aqueous samples at low-to-moderate conductivity; it is single-use or carefully cleaned between runs. The dip cell extends measurement to larger volumes and non-standard containers, useful for viscous or reactive formulations. High-concentration cells use shorter path lengths and attenuators to reduce multiple scattering, enabling measurement at higher particle loadings without full dilution.

For samples with conductivity above 5 mS/cm, the diffusion barrier method introduces a thin layer of low-conductivity medium between the electrode and the sample, reducing Joule heating and electrode degradation while maintaining the electric field across the measurement zone.

Instrument validation and transfer standards

Instrument performance should be verified before each measurement campaign using a commercial transfer standard. The Malvern DTS0050 is a widely used polystyrene latex standard with a typical zeta potential of −50 ± 5 mV at 25°C; a result outside this range signals instrument drift, cell contamination, or electrode degradation. Wyatt Technology instruments have analogous verification procedures using traceable standards.

Broader variation indicates a sample or instrument problem, not natural dispersion behavior.

Validation checklist:

• Run DTS0050 (or equivalent transfer standard) at the start of each session.
• Confirm count rate is within the instrument's specified range.
• Inspect phase or frequency plots for clean sinusoidal signals; noisy or irregular plots indicate bubbles, contamination, or electrode issues.
• Check conductivity of the standard against its certificate value.
• For reusable cells, flush with filtered ethanol, then filtered deionized water, and allow to dry before solvent-based samples.

Signs of electrode degradation include blackening of the electrode surface, erratic count rates, and zeta values that drift systematically across replicate runs. Replace or recondition electrodes at the first sign of blackening; degraded electrodes introduce a systematic offset that no software correction can fully remove.

Astra-chemical's method development work routinely uses the Malvern Zetasizer for ELS measurements, which provides a consistent platform for comparing zeta data across formulation iterations.

How do you interpret zeta outputs and troubleshoot anomalous results?

Reading results correctly

A single zeta measurement is rarely sufficient. The minimum meaningful dataset is three to five replicate runs at fixed temperature, pH, and conductivity, reported with mean and standard deviation.

Zeta distributions (rather than single mean values) reveal population heterogeneity. A narrow, symmetric distribution centered at −35 mV indicates a homogeneous, well-stabilized dispersion. A broad distribution or a secondary peak near zero signals a subpopulation of weakly charged or uncharged particles that will aggregate preferentially.

Common artifacts and their causes

• Electrode blackening / degradation: causes systematic drift; replace electrodes or use diffusion barrier mode.
• Bubble formation: produces erratic phase plots and artificially high apparent mobility; degas samples and reduce applied voltage.
• Joule heating at high voltages: raises local temperature, lowers viscosity, and inflates measured mobility; reduce voltage or switch to constant-current mode.
• Multiple scattering at high concentration: attenuates the signal and shifts apparent mobility; dilute conservatively in matched dispersant.
• Dilution in DI water: strips electrolytes, expands the double layer, and can shift zeta by 10–20 mV or more relative to the in-use condition; always dilute in the original dispersant phase.

Stepwise troubleshooting protocol

1. Check sample concentration and count rate; if count rate is too low or too high, adjust concentration in matched dispersant.
2. Inspect phase or frequency plots; irregular waveforms indicate bubbles, contamination, or electrode failure.
3. Measure conductivity; if >5 mS/cm, apply diffusion barrier mode or switch to electroacoustic measurement.
4. Reduce applied voltage and increase the number of sub-runs to improve signal averaging.
5. Rerun the DTS0050 transfer standard to confirm instrument performance has not drifted.
6. If results remain inconsistent after these steps, recollect the sample.

Recollect rather than continue when: visible precipitate has formed, the sample shows irreversible color change indicating chemical degradation, or electrode blackening is extensive. Salvageable data typically comes from samples where the only variable is concentration or voltage; data from chemically altered samples should not be used for formulation decisions.

Where does zeta potential inform real formulation decisions?

Zeta potential is non-destructive and probes the outermost regions of particles/02%3A_Physical_and_Thermal_Analysis/2.05%3A_Zeta_Potential_Analysis), making it well suited for monitoring the effect of surface treatments and additives in real formulations. Across coatings, pharmaceuticals, cosmetics, and water treatment, the measurement serves four primary functions.

Dispersant selection and dosage screening. Zeta potential responds directly to dispersant adsorption. As dispersant concentration increases from zero, zeta typically shifts from near-neutral toward a plateau value; the dosage at which the plateau is reached corresponds to saturated surface coverage. Overdosing beyond this point rarely improves stability and can introduce bridging flocculation in some polymer dispersant systems.

Isoelectric point mapping. Constructing a zeta-pH curve identifies the IEP and the pH windows of stability. For pigment dispersions in waterborne coatings, operating at least 2–3 pH units away from the IEP provides a practical safety margin. Refer to the dispersant selection guide for dosage and pH optimization strategies in coatings systems.

Batch-to-batch QC. A zeta measurement at a fixed, documented condition (pH, temperature, ionic strength, concentration) takes under five minutes and provides a sensitive indicator of surface chemistry changes between batches. Shifts of more than 5–10 mV at constant conditions warrant investigation before the batch is released.

Surface modification verification. After coating particles with a polymer, silane, or other surface treatment, zeta potential confirms whether the modification changed surface charge as intended, and whether the treatment is stable over time or aging.

Limitations and complementary tests

Predicting stability from zeta potential alone can be misleading when particle density is high (sedimentation proceeds even at high zeta magnitudes), when steric stabilization dominates over electrostatic repulsion, or when kinetic barriers rather than thermodynamic ones govern shelf life. Zeta also cannot distinguish between particles that are stable because of electrostatics and those that are stable because of adsorbed polymer layers that contribute little to measured charge.

Recommended complementary measurements:

• Particle size distribution (DLS): measure size first to set the correct concentration for zeta, and interpret zeta distributions in the context of size polydispersity. A bimodal size distribution almost always produces a bimodal zeta distribution.
• Turbidity / transmission: accelerated sedimentation or Turbiscan-type backscattering profiles provide kinetic stability data that zeta alone cannot supply.
• Rheology: for coatings, viscosity and yield stress measurements capture the network structure that determines application behavior; see the rheology modifiers selection guide for how these measurements interact with dispersion stability.
• Accelerated aging / centrifugation: stress testing at elevated temperature or centrifugal force compresses the timescale of real-world stability and reveals failure modes that a single zeta measurement cannot predict.

Astra R&D screening protocol for dispersant-driven zeta control

The following workflow reflects the approach Astra-chemical's R&D team applies when screening dispersants and additives for zeta-driven stability control in industrial formulations. It is qualitative and adaptable; the specific concentrations and pH targets depend on the particle system.

Stepwise screening protocol:

1. Measure baseline zeta and particle size of the undispersed or minimally dispersed sample at the target pH and ionic strength.
2. Dilute conservatively in the original dispersant phase (not DI water) to a concentration that yields adequate count rate without multiple scattering.
3. Add the candidate dispersant at the lowest practical dosage; allow 10–15 minutes for adsorption equilibration.
4. Remeasure zeta and particle size; document conductivity and pH after each addition.
5. Increment dosage stepwise and repeat until the zeta plateau is reached or particle size stops decreasing.
6. Titrate pH across the relevant formulation range to map the IEP and confirm the stability window.

Pro Tip: Always use the matched dispersant solvent for dilution. Switching to a different solvent, even a chemically similar one, can alter the dielectric constant enough to shift the Henry function and produce a systematic error in the reported zeta value.

Manufacturer-level observations from this workflow: dispersant addition in coatings systems typically shifts zeta from a near-neutral or weakly negative value toward a more strongly negative plateau (often −30 to −50 mV range for anionic dispersants), accompanied by a reduction in mean particle size and polydispersity index (PDI). In nonpolar or low-dielectric systems, charge-based stabilization is weaker and steric contributions from the dispersant's polymer backbone dominate; zeta magnitudes in these systems are often lower in absolute terms, and the stability interpretation requires caution.

Astra DISP® dispersants are formulated to shift surface charge and improve electrostatic or steric-electrostatic stabilization in both aqueous and non-aqueous systems. Pairing them with the screening protocol above gives formulators a testable, repeatable basis for dosage decisions rather than relying on empirical trial and error. For common formulation pitfalls where zeta measurement can diagnose the root cause, the water-based coating formulation mistakes guide provides practical troubleshooting context.

Prioritizing repeatability over single-run precision

The most common mistake in zeta-based formulation work is treating a single measurement as a definitive answer. Absolute zeta values carry uncertainty from model assumptions, sample preparation variability, and instrument drift; what they cannot carry is the context of a trend. Astra-chemical's R&D team consistently prioritizes method validation and batch-to-batch consistency over chasing a specific target number. A dispersion that measures −38 mV in one lab and −32 mV in another is not necessarily less stable in the second lab; it may simply reflect a 2°C temperature difference or a slightly different background electrolyte concentration.

The practical implication: invest in a robust SOP, run the DTS0050 transfer standard at the start of every session, and use zeta trends across batches and conditions as the decision variable. During scale-up, method transfer between lab and production instruments is a critical step that Astra-chemical's technical team supports directly, including instrument qualification, SOP alignment, and interpretation of anomalous results. Comparative zeta trends, anchored by a validated standard and documented metadata, are far more reliable for production decisions than any single absolute value.

Astra DISP® dispersants for zeta-driven formulation control

Controlling zeta potential in dispersions requires more than measurement; it requires additives that reliably shift surface charge and maintain it across the formulation's pH and temperature range. Astra DISP® dispersants are engineered for precisely this function, providing anionic, cationic, and steric-electrostatic stabilization options for aqueous and non-aqueous systems across coatings, inks, adhesives, and industrial dispersions.

Formulators working through the screening protocol described above can request technical samples and application-specific guidance directly from Astra-chemical's technical team. The team supports method transfer, instrument qualification, and dosage optimization for new particle systems, reducing the iteration cycles between lab screening and production scale-up. Astra-chemical's full additive portfolio includes defoamers and rheology modifiers that complement dispersant selection when foam or viscosity control is also required. To request a sample or discuss a specific formulation challenge, contact Astra-chemical through the product inquiry page.

Sources

• Zeta potential - An introduction in 30 minutes | Malvern Panalytical
• Measuring Zeta Potential of Nanoparticles - National Cancer Institute’s Nanotechnology Characterization Laboratory Assay Cascade Protocols - NCBI Bookshelf
• NCL protocol (Measuring Zeta Potential of Nanoparticles) - NCL Methods / NCI
• Zeta Potential and Colloidal Stability Predictions for Inorganic ...

FAQ

What is the zeta potential of a dispersion?

Zeta potential is the electrokinetic potential at the slipping plane between a particle's bound ion layer and the bulk dispersant phase. It quantifies the electrostatic repulsion between particles and serves as the primary indicator of electrostatic dispersion stability.

What is a good zeta potential for a stable dispersion?

Values more positive than +30 mV or more negative than −30 mV are generally considered sufficient for electrostatic stability. Values between −10 mV and +10 mV indicate a neutral surface charge and high flocculation risk.

Is a higher or lower zeta potential better?

Higher magnitude in either direction (more positive or more negative) indicates greater electrostatic repulsion and better stability. The sign itself reflects the particle's surface charge polarity, not a quality judgment; what matters is the absolute magnitude relative to the ±30 mV threshold.

What role does zeta potential play in the stability of coarse dispersions?

For coarse or high-density particles, zeta potential contributes to electrostatic repulsion but cannot fully counteract gravitational sedimentation. In these systems, zeta measurement remains useful for monitoring surface chemistry and dispersant performance, but must be paired with sedimentation tests, rheology, and particle size analysis for a complete stability assessment.

How do you measure zeta potential reliably?

Reliable measurement requires ELS or electroacoustic instrumentation, a validated SOP with controlled pH, temperature, and ionic strength, instrument verification with a transfer standard such as the Malvern DTS0050, and full metadata reporting including the Henry function used, cell type, and number of replicate runs with standard deviation.
